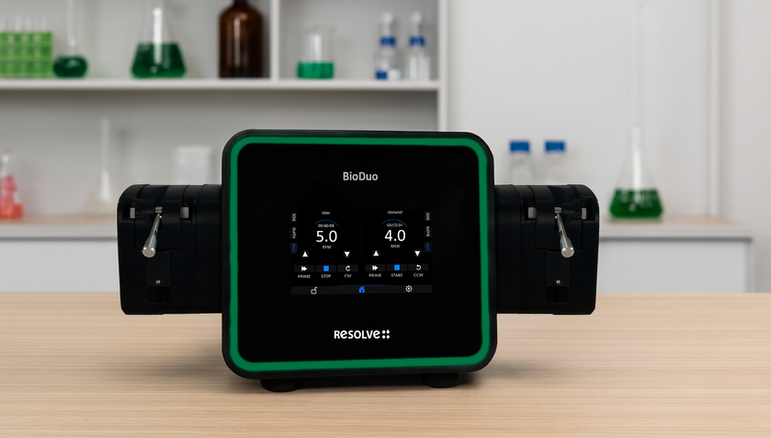

BioDuo
Small | Smart | Specific
Two pumps in One for multiple applications
Catalog No: RDACC017
Series: 1S | 1F | 1M | 1D
Indigenously designed and developed, the BioDuo peristaltic pump can be widely used for multiple applications across varied industries. It provides accuracy, repeatability and a failsafe solution for achieving zero downtime where continuous fluid transfer is of utmost importance. It is equipped with dual heads, a compact and ergonomic design, and its touch screen interface makes it extremely user-friendly.
Applications: Fluid transfers, Buffer and Culture media filling, Fermentation, Harvesting cell media, Purification and Filtration, Metering, Dosing and Dispensing, Liquid filling, Tablet coating.
-
Transfer Mode: Variable RPM (1S), Flow Rate (1F)
-
Dispensing Mode: Single Dose (1D), Multi-Dose (1M)
-
Dose Volume: From 1mL to 500mL
-
Flow Rate: Up to 2000 mL/min
-
Heads: ​​
-
H200 (0.01 mL/min to 200 mL/min)
-
H2000 (0.5 mL/min to 2000 mL/min
-
Both heads can be different in single pump
-
WHY BIODUO
Extremely compact, can be mounted on existing lines
-
For frothing liquids - Minimize froth, precision filling
-
For viscous liquids - Adjustable flow rates
-
Compatible with abrasive and corrosive liquids
-
Accuracy of ± 0.5%
-
For low volume fills - As low as 0.5mL fills
-
For biomolecules - No shearing of molecules
-
For large productions - with Fillbot; fill 900 vials/hour of 100mL vials
-
For critical applications - Zero production downtime
-
For users - No tube slipping
-
For high frequency fills - No dripping
-
For cold rooms - No condensation
-
For critical small spaces - Ultra-compact 2 in 1
FEATURES
Eliminate contamination risk during
fluid transfers
BioDuo peristaltic pump offers a clean, reliable and versatile solution with accuracy, precision and no contamination that is critical to maintain a clean and safe process for sterile and controlled conditions
In our peristaltic pump, during transfer, the fluid only comes in contact with the bore of the tubing, and this eliminates the risk of the pump contaminating the fluid or the fluid contaminating the pump. The tubing of peristaltic pump can be changed easily or sterilized to avoid cross-contamination.
FEATURES
Auto Weight Filling
Pump starts and Stops automatically at target weight cut-off from
weighing scale
Avoid shearing of biomolecules and substance damage
Our pump head offers gentle pumping action, that ensures no shearing of delicate biomolecules, prevents denaturation and degradation and gives consistent product quality while maintaining substance integrity.
Two Pumps in One for multiple applications
Version 1S | Standard Variable RPM Mode:
User can adjust RPM from 0.1 – 200 RPM
Version 1F | Flow + RPM Mode:
User can calibrate & adjust flow rate as per requirement
Version 1D | Single Dose + Flow + RPM mode:
User can dose a fixed volume of liquid. User can calibrate & adjust flow rate as per requirement
Version 1M | Multi Dose + Flow + RPM mode:
User can use multi dose for continuous batch filling
Zero Production Downtime
-
No more waiting for service engineers and no more delay, as second independently operated head acts as failsafe back-up.
-
Designed for continuous and long operations to ensure smooth and uninterrupted liquid transfer operations.
-
Second head on different pump allows to run projects concurrently during downtime.
-
Alternating head use also helps longer pump life across multiple shifts.
Double the Production with In-built Redundancy
Combining the output of independent two heads, the pump can handle larger volumes, making it suitable for applications where a single head may be insufficient.
If one head fails or requires maintenance such as tube replacement, the other head can take over the pumping duty without interruption, eliminating any downtime associated with repairs and replacements.
Ergonomic design to save precious clean room space
Two pumps in one unit and a single power cord, makes your lab space more structured and efficient. BioDuo offers significant space advantage and flexibility specially when multiple pumps are required for various activities without compromising on functionality.
Easy to Operate, Auto-Calibrate, Low maintenance and Higher productivity
Simplified user-friendly instructions and intuitive control, ensures calibration is accurate and precise, eliminating the guesswork and streamlining the workflow. Flexible configuration, makes it easier to run complex programs.
BioDuo peristaltic pump has overload protection. Incase of overload, the motor will stall but not be damaged.

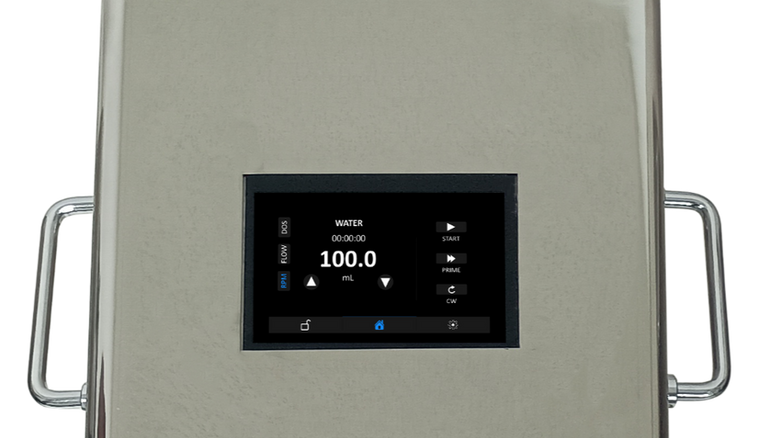

Visual Cues and Led Indicators, Screen Lock, Sensor based Safety lid
Onscreen indicators for visual cues such as direction and pump's operational status, errors and on-screen display. Screen lock features enhances security of operations and prevents accidental changes to settings. Open-head sensor feature does not allow operation of drive motor when pump head is open. This ensures operator safety and eliminates any accidental contact with rotating rollers during operations.
Save Time and Ensure Accuracy using Quick Calibration
Users can swiftly adjust the pump's settings to compensate for any discrepancies in fluid dispensing, eliminating the need for time-consuming manual adjustments. This ensures precise dispensing, leading to consistent results and reducing material waste.
Automate Processes and Improve Efficiency using Flow Timer
By setting timers for RPM & FLOW modes, users can automate the pump's operation according to specific time intervals. This feature enhances efficiency by reducing manual oversight, enabling users to focus on other tasks while the pump operates autonomously.
Ensure User Safety and Prevents Accidents
The safety feature automatically halts pump operation when the lid is opened during use, minimizing the risk of injuries or spillages. This safeguard promotes a secure working environment, particularly in settings where precise fluid handling is critical, such as laboratories or manufacturing facilities.
Maintain Continuity and Prevent Disruptions by enabling Auto Resume Feature
In the event of a power interruption, the auto resume feature ensures that the pump automatically restarts once power is restored. This capability prevents disruptions to processes and minimizes downtime, preserving productivity and workflow continuity.
Enhance Traceability with Activity logging for GMP compliance
The comprehensive activity logging functionality records every pump operation, including batch logs, providing valuable data for traceability and quality control purposes. Users can track and analyze pump performance, identify trends, and troubleshoot issues more effectively, thereby optimizing processes and ensuring product quality.
Enhance Control and Accountability
By creating user profiles with different access levels (Admin, Supervisor, Operator), the security feature enables organizations to establish granular control over pump operation and settings. This ensures that only authorized personnel can access and modify critical parameters, enhancing security, accountability, and regulatory compliance.
Keep Pump Up-to-Date with Latest Improvements
The OTA updates feature enables the pump to receive software patches and feature upgrades wirelessly, without requiring manual intervention. This ensures that the pump remains current with the latest advancements, bug fixes, and performance enhancements, maximizing its longevity and functionality over time.
Provide Flexibility and Convenience
Pairing the pump with compatible wireless accessories expands its functionality and usability, offering users greater flexibility and convenience in fluid dispensing operations. Whether it's remote control capabilities or integration with other equipment, wireless accessories enhance the pump's versatility and adaptability to diverse applications.
Anti-slip feature to avoid tube sliding, CE and IP31 Rating, 2 Bar pressure
-
The pump features anti-slip teeth on the clamps while the touch screen guides user to enable anti-slip before start.
-
Designed as per CE rating and IP31 ingress protection
-
Approximate 2-bar pressure maintained across the tube to provide precise volume dispense. It is ideal for liquid with various viscosities and densities.
Applications
Peristaltic pumps are used for multiple applications such fluid transfers, buffer and culture media transfer, fermentation, harvesting cell media, purification and filtration, metering, dosing and dispensing, liquid filling, tablet coating, chromatography and more...
BIO PROCESSING
PHARMACEUTICALS
CHEMICALS
FOOD AND BEVERAGES
COSMETICS
VIDEOS
Runs two independent applications simultaneously
Media and Buffer Transfer
Downstream Bio Processing
​Metering, Dosing & Dispensing of chemicals
Agar Plates and Culture Media Filling
Auto Weight Filling
SPECIFICATIONS
Control Range (turndown ratio)
0 - 200 RPM
Power Supply DC input
24V 75W
Enclosure Design
IP31 (Equivalent to NEMA 2)
Tubing Options
Silicon Tubing only
Operating Tempeature
5° C to 40° C
Warranty
1 year
Delivered with: 1 peristaltic pump with 2 independent drives, 2 peristaltic pump heads, 5 meters of tubing, 1 user manual, 1 power adapter.
